Product Name

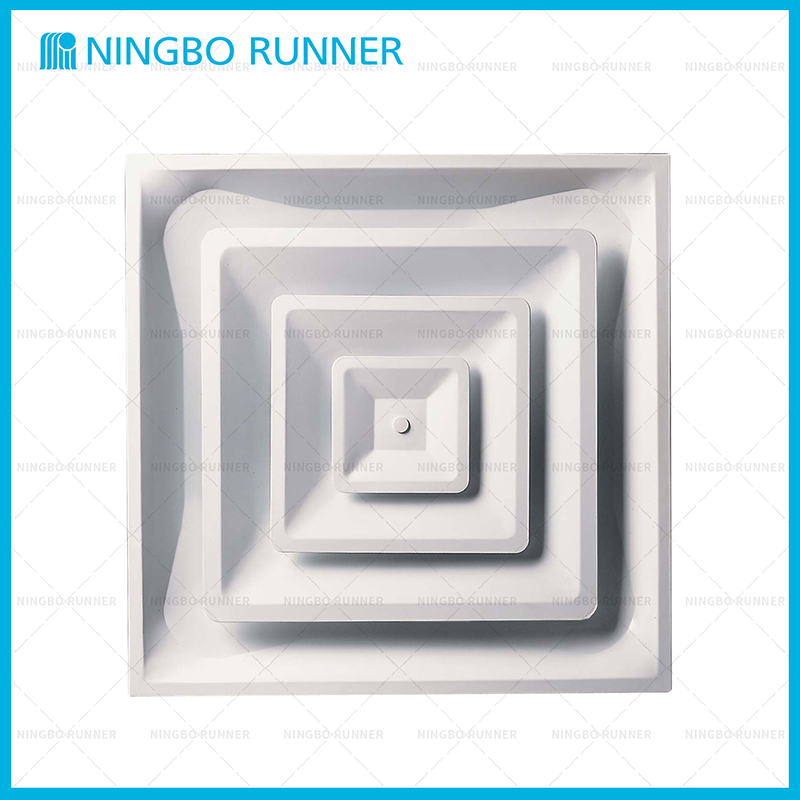

402603 T-Bar Steel 3-Cone Fixed-Pattern Diffuser without Collar and Insulation

Model Number

402603

Download Link
Parameter
Features
Download
  • FunctionFor Air Return
  • Surface TreatmentElectrical Deposition+ Powder Coating
  • ColorWhite
  • Design3-Cone
  • MaterialSteel

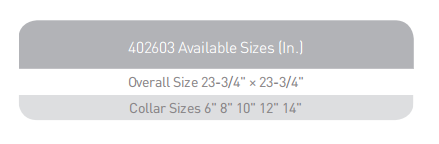

  • Product Dimension23-3/4'×23-3/4' (24'×24' openings)
  • Steel construction?
  • Use for T-bar ceiling?
  • Three-cone fixed core
  • Can match insulation?
  • 360-degree air diffusion?
  • Accept model #403302 snap in collar ring (6'-14')?

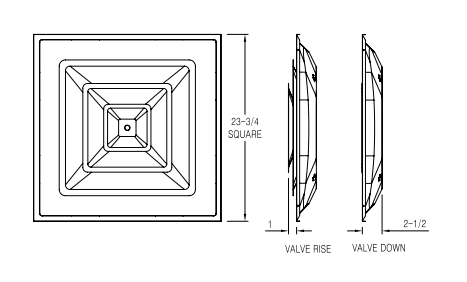

  • Overall size 23-3/4'×23-3/4' (24“×24" openings)?
  • White durable finish?
